High speed gearbox L shape angle profile roll forming machine
1. Introduction
Zhongheng roll forming machinery Co., Ltd is the manufacturer specilized in Roof Steel Tile roll forming machine. We provide an extensive line of products, which includes roof and wall panel machine , roof tile machine, purline forming machine, floor decking machine,gutter forming machine,roller shutter machine etc.
2. application
Our roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
3. Specification
| 1 | Power Requirement | Voltage | 600v/3ph/60hz |
| Main Motor power | K77-7.5KW Siemens brand |
| Cutter power | 5.5kw(with cooling system)Siemens brand +2.5kw (servo motor Yaskawa brand) |
| 2 | Forming speed | 45m/min |
| 3 | Forming stations | 10 row |
| 4 | Thickness of structure | 30mm |
| 5 | Forming shaft diameter | 50mm |
| 6 | Screen | Touch screen |
| 7 | Type of cutting | Non-stop cutting |
| 8 | PLC control | XINJIE BRAND |
| 9 | Transducer | Delta Brand |
| 10 | Install dimension(depend on the final design) | 4.6m×0.85m×1.3m |
| 11 | Total weight (Approx) | 2.5T |
| 12 | All electrical wiring and components must meet Canadian Electrical Authority standards |

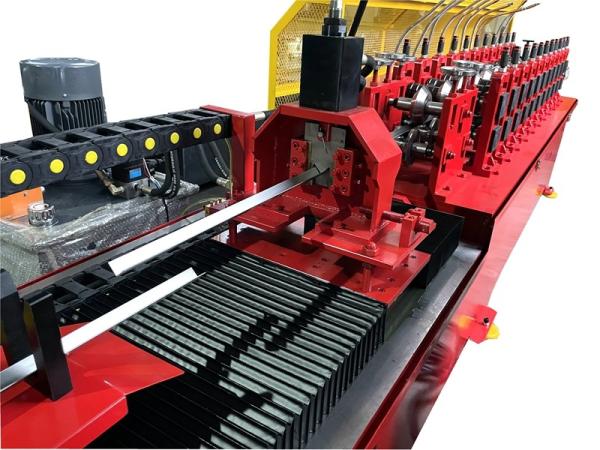

Machine picture
Trade Terms and After sale service
1.Payment Term:30% paid by T/T as down payment,Balance 70% after inspection before delivery. After finish production, we will inspect the machine and inform the buyer, the buyer come inspect goods, then pay the balance before shipping.
2.Delivery Time:We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .
3.After sale Service:We could send technician to your country to install machine if you need. The buyer need to pay all the cost, including:visa, round trip tickets, accommodation, salary of USD 100~120 per day.
4.Warranty:12 months
During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping .We will also provide you instruction manual to show you how to operate the machines.
Where is your factory located ? How can I visit you ?
Zhong Heng Roll forming machinery is located at Industrial Zone of Botou , Hebei Province of China. Welcome to visit us by:
1. Fly to BEIJING or TIANJIN Airport, then take high speed train from BEIJING NAN to CANGZHOU XI, about 1 hour, I will pick up you there.
2. Fly to SHANGHAI Airport, then take high speed train from SHANGHAI HONGQIAO to CANGZHOUXI, about 4.5 hour,I will pick up you there.
Free to Contact us
|
|
High speed gearbox L shape angle profile roll forming machine Images
|
